Core Concepts

Before you deploy resources, it helps to understand how Kube-DC is organized. The platform uses a strict hierarchy to ensure security and billing accuracy.

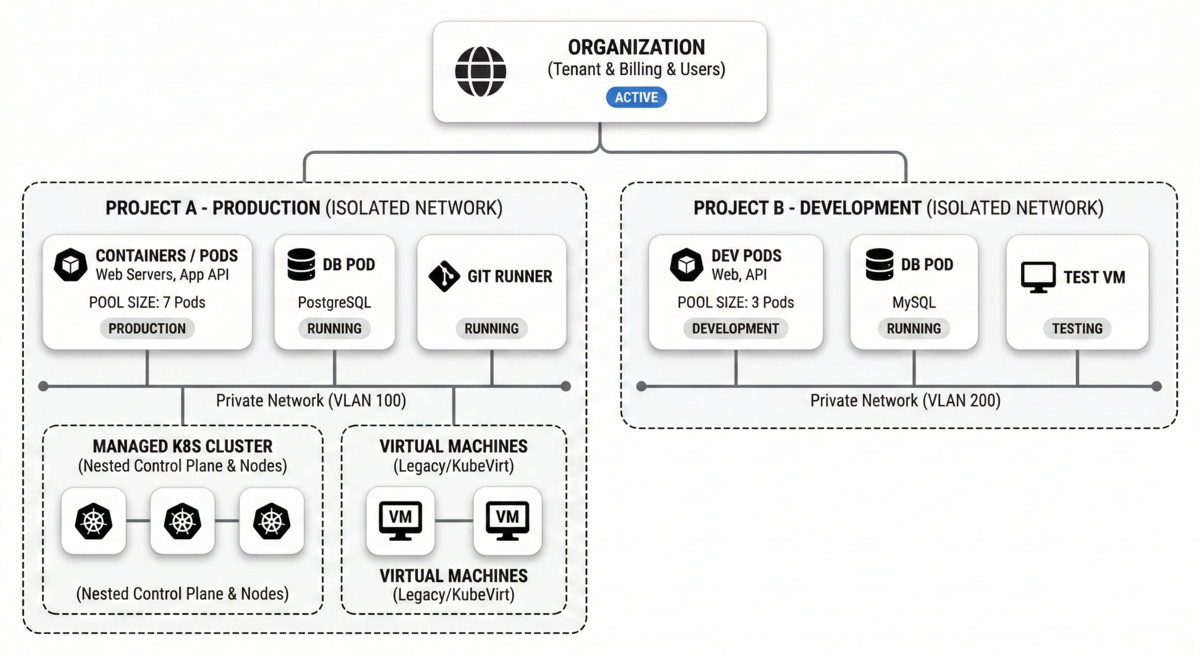

Kube-DC Hierarchy

The Hierarchy​

Kube-DC is structured in three levels:

Organization (The Tenant)​

An Organization is your company or team account — the top-level entity in Kube-DC.

  • Billing and User Management happen at this level
  • Invite multiple users to your Organization and assign them different roles (e.g., Administrator, Developer)
  • Isolated SSO realm with Keycloak-based authentication

Project (The Workspace)​

Projects act as isolated containers for your infrastructure. You might create separate projects for different environments (e.g., production, staging, testing).

  • Each Project gets its own completely isolated network
  • Dedicated Kubernetes namespace
  • Quotas (limits on CPU/RAM) can be applied specifically to a Project
  • RBAC-controlled access

Resources (The Workloads)​

Resources are the actual items you deploy inside a Project:

  • Virtual Machines — Full VMs powered by KubeVirt
  • Containers — Standard Kubernetes pods and deployments
  • Services — Expose your workloads via LoadBalancer, NodePort, or Ingress
  • Storage — Persistent volumes (block) and S3 buckets (object)
  • Networking — External IPs (EIP), Floating IPs (FIP), and NAT gateways

Network Isolation (SDN)​

Security in Kube-DC is built around Network Isolation.

Project-Level Isolation​

Every Project you create is assigned its own private network (VXLAN/VLAN). Projects can also obtain external IPs from the provider network — either assigned directly to VMs or via LoadBalancers for Kubernetes workloads.

No Traffic Leaks​

By default, a Virtual Machine in "Project A" cannot communicate with a Virtual Machine in "Project B", even if they belong to the same Organization. This effectively prevents development environments from impacting production.

Overlapping IPs​

Because networks are isolated, you can use the same internal IP ranges (CIDRs) in different projects without conflict — similar to AWS VPCs.

Kubernetes-Native​

Every resource in Kube-DC is a Kubernetes Custom Resource. This means you can manage your entire infrastructure using:

  • kubectl CLI
  • Helm charts
  • Terraform (Kubernetes provider)
  • GitOps (ArgoCD, Flux)
  • The Kube-DC Web UI
