Managed Kubernetes clusters

Each team gets its own Kubernetes API. Your platform team operates the control planes.

Departments, faculties, or customers can provision tenant-administered Kubernetes clusters from their projects. Kube-DC runs the control planes. Tenant administrators manage their clusters' workloads, upgrades, and access.

Architecture​

A managed cluster has two parts:

  • The hosted control plane runs as managed pods on the platform cluster. It includes the API server, controller manager, and scheduler, with a dedicated PKI for each cluster. Control planes use a platform-internal network that has no route from tenant networks. Tenants reach only the API endpoints published for their clusters.
  • Worker pools run as virtual machines in the tenant project's VPC, beside the project's other workloads. Workers join the control plane when the cluster is created and when a pool scales up.

Clusters can share the platform datastore or use a dedicated etcd datastore. A dedicated datastore uses three replicas by default and keeps the cluster state on its own instance. The platform manages certificate rotation.

KubeVirt-backed Managed Cluster topologyIn the acme-production Project infrastructure namespace, KdcCluster dev owns a LoadBalancer Service for the API, a Kamaji TenantControlPlane with API server, scheduler, and controller-manager Pods, a KdcClusterDatastore backed by an etcd StatefulSet, a worker MachineDeployment backed by KubeVirt virtual machines, and a CCM Deployment. Together these resources create Managed Cluster dev with three workers and a separate Kubernetes API for tenant Deployments, Services, and persistent volume claims.MANAGEMENT CLUSTER · ACME-PRODUCTIONKdcClusterdevControl-plane Servicedev-cpLoadBalancer APITenantControlPlaneKamajiDatastoredev-etcdCCM Deploymentkccm-devControl-plane PodsAPI server · schedulercontroller-manager Podsetcd clusteretcd StatefulSetpersistent storageMANAGED CLUSTER DEV · SEPARATE APIWorker MachineDeploymentworker-1 · worker-2worker-3 · KubeVirt VMsTenant workloadsDeployments · ServicesPVCs
KdcCluster owns a Kamaji control plane, datastore, worker MachineDeployment, and CCM inside the Project infrastructure namespace; users reach a separate tenant Kubernetes API and run workloads on its workers.

Provisioning​

A cluster is one manifest (or a console form):

apiVersion: k8s.kube-dc.com/v1alpha1
kind: KdcCluster
metadata:
  name: analytics
  namespace: acme-data-platform
spec:
  version: v1.36.1
  controlPlane:
    replicas: 1            # 2+ = multi-replica topology; availability depends on deployment
  dataStore:
    dedicated: true        # own etcd instance for this cluster
  network:
    serviceCIDR: 10.96.0.0/16
    podCIDR: 10.244.0.0/16
  workers:
    - name: general
      replicas: 3
      cpuCores: 4
      memory: 8Gi
      diskSize: 30Gi

From this resource, the platform provisions the control plane, datastore, worker VMs, cluster PKI, and kubeconfigs, then joins the workers. Deleting the KdcCluster removes the cluster. Backup objects follow the configured bucket and retention policy.

Endpoints and access​

  • Private by default. The cluster API is reachable from the owning project's VPC.
  • Public HTTPS when requested. An annotation publishes the API at a stable hostname through the platform gateway, DNS, and certificate issuer. The API server certificate is reissued with the public name.
  • Kubeconfigs stored as Kubernetes Secrets. The owning project receives an admin kubeconfig for the in-VPC endpoint and, when enabled, an external kubeconfig for the public endpoint. Tenants and CI systems can retrieve them through the console, CLI, or kubectl.
  • Independent break-glass credentials. The admin kubeconfig does not rely on platform SSO. Access still requires an available endpoint, network path, and control plane.

Worker pools​

  • Configure CPU, memory, disk, OS image, and replica count for each pool. A cluster can have several pools for different workloads.
  • Prepared, versioned worker images are matched to the Kubernetes version.
  • Per-pool autoscaling uses minReplicas and maxReplicas bounds, plus a maximum change per scaling event.
  • Rolling operations honor PodDisruptionBudgets during drains, up to the configured drain timeout.

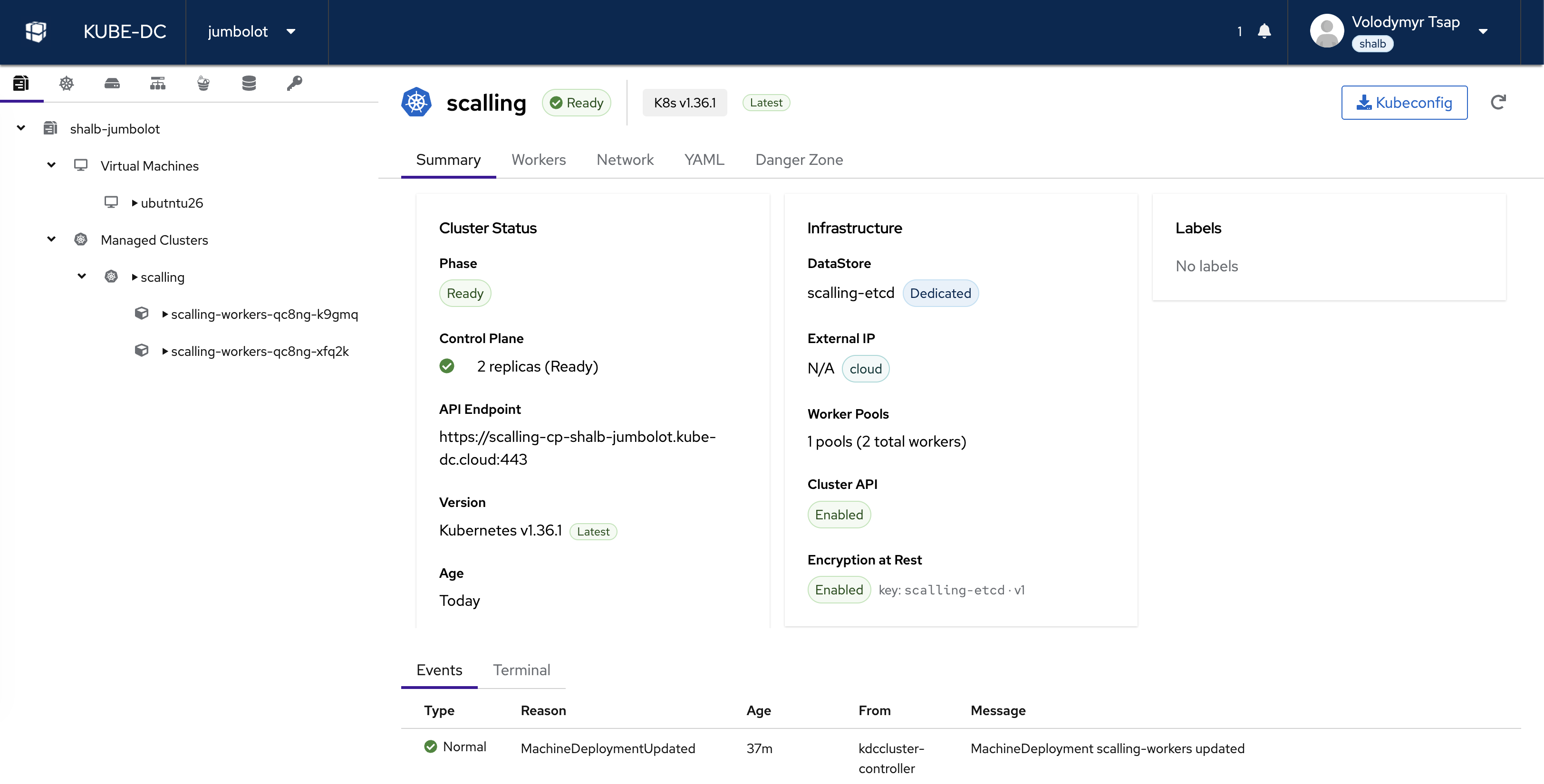

Managed Kubernetes cluster summary showing Ready status, API endpoint, kubeconfig download, control-plane replicas, worker count and encryption-at-rest status
The cluster summary brings endpoint access, control-plane readiness, worker capacity and security status into one tenant-facing view.

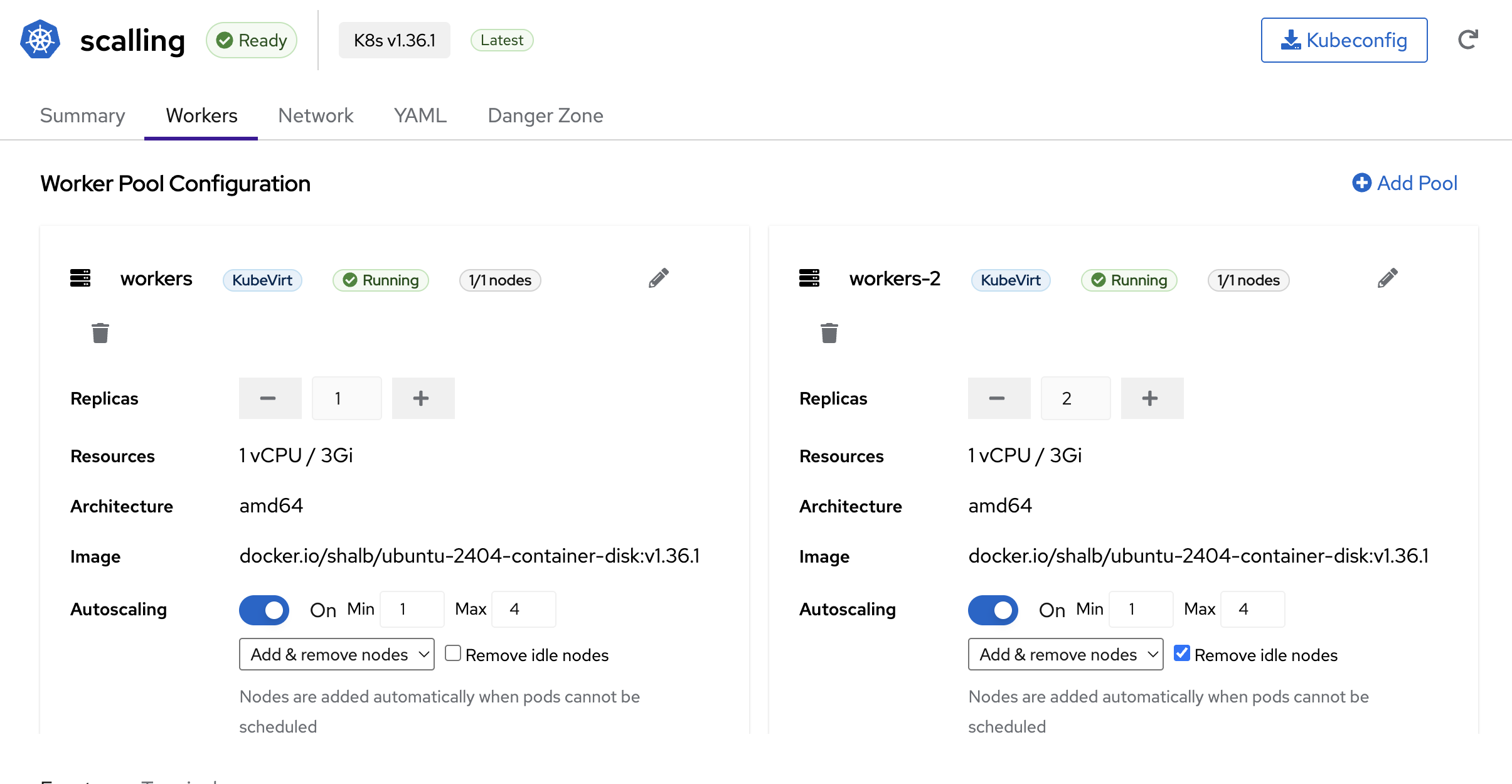

Two Managed Kubernetes worker pools with replica controls and autoscaling enabled between one and four nodes
Worker-pool autoscaling is configured independently per pool, including minimum and maximum replicas and whether idle nodes may be removed.

Control-plane and etcd right-sizing​

Kube-DC adjusts tenant control-plane resources within configured bounds and available platform capacity. VerticalPodAutoscalers are enabled by default for control-plane pods and etcd members:

  • Resource targets follow observed load between configured floors and ceilings. Small clusters stay small, while growing clusters receive more API server and etcd capacity.
  • Scaling is quorum-aware by design: recommendations are applied in-place where possible, and etcd resizing respects member quorum. Single-replica datastores use a conservative initial-assignment mode.
Managed Kubernetes control-plane right-sizingUsage metrics feed a VerticalPodAutoscaler constrained by configured resource floors and ceilings. It recommends in-place resizing for hosted control-plane Pods where possible and quorum-aware resizing for etcd members.BOUNDED AUTOMATIC RIGHT-SIZINGUsage metricsobserved loadVertical autoscalerconfigured floorstargets · ceilingsControl-plane Podsin-place resizeetcd membersquorum-aware
Usage metrics feed bounded recommendations to the control plane and datastore; the platform applies them in place where possible and preserves etcd quorum.

Upgrades​

Upgrades are staged and tenant-controlled:

  1. The tenant (or platform team, by arrangement) sets the target version.
  2. The control plane upgrades first, without replacing worker nodes.
  3. Worker pools roll in steps — new nodes join, old nodes drain and leave, pool by pool, with PodDisruptionBudgets honored during drains.

The control plane and workers move separately. Tenants can pause after a stage, validate the cluster, and continue. Supported version skew follows upstream Kubernetes policy.

Managed Kubernetes upgrade sequenceA tenant selects a supported Kubernetes target version. Kube-DC upgrades the hosted control plane first, then rolls worker pools by joining replacement nodes, draining old nodes, and removing them. The tenant validates before continuing.STAGED · TENANT-CONTROLLED UPGRADESelect versionsupported targetControl planeupgrades firstWorker poolsjoin · drainleave in stepsValidatepause or continue
The tenant selects a supported target; the hosted control plane moves first, worker pools roll in bounded steps, and the tenant can validate between stages.

Snapshots and restore​

  • Scheduled etcd snapshots are enabled automatically when the project's backup bucket exists (daily by default; schedule and retention configurable per cluster), written to the project's S3-compatible storage.
  • On-demand snapshots at any time — from the console or by triggering the snapshot job.
  • Optional envelope encryption of snapshots with a tenant-scoped key reference; without it, snapshots are stored unencrypted.
  • Self-service restore: pick a snapshot, trigger the restore, and the control plane returns with the cluster's API state rolled back to the snapshot. The tenant API is unavailable during restore.

Scope and current limits, stated plainly:

  • Etcd snapshots protect Kubernetes API state; they do not protect PersistentVolume contents — protect application data through its owning service (database backups, volume snapshots, object storage).
  • Restore currently supports single-replica etcd datastores; multi-replica restore is on the roadmap. For clusters using the default three-replica dedicated datastore, restore is an assisted operation until then.

Isolation and security​

  • Control planes run on a platform-internal network with no route from tenant networks; workers and workloads live in the tenant project's VPC.
  • Each cluster has its own PKI — certificates are per-cluster, rotated by the platform.
  • Inside their cluster, tenants hold full cluster-admin: their own RBAC, CRDs, operators and admission configuration, independent of the platform's project roles.
  • The cluster inherits the project's network boundary: reaching a cluster's workloads from outside happens only through the exposure the tenant configures (LoadBalancer services, HTTPS routes).

Observability​

When the observability stack is enabled, managed-cluster control-plane logs and events appear in the owning organization's Grafana. Tenants can inspect their API servers and controllers, while the platform team monitors all control planes centrally. The operator defines coverage and retention.

Responsibilities​

ConcernYour platform team (via Kube-DC)Tenant
Control-plane operation, PKI, datastore✅—
Control-plane/etcd sizing✅ automatic, within configured bounds—
Worker pool sizing and autoscaling bounds—✅
Kubernetes version and upgrade timingControllers execute the staged rollout✅ selects target and timing from supported versions
Etcd snapshotsControllers execute scheduled snapshots✅ policy, on-demand runs, restore initiation
Workloads, in-cluster RBAC, CRDs, operators—✅
Application data protection—✅ via managed services
Network exposure of cluster workloadsPlatform provides EIPs/routes✅ configures
