Choose an installation network layout

Use this guide to configure New Cluster → Network before you install Kube-DC. Choose the tenant network, then choose how clients reach the platform. The form generates the install .env input. It does not configure physical switches, create host bonds, or change host routes during discovery.

Before you begin

Get the following information from your network operator:

• The carrier interface on each server and the switch ports connected to it.
• The cloud network VLAN, CIDR, gateway, and reserved addresses.
• The same values for a public tenant network, if required.
• The control-plane internal IPs and eligible gateway node names.
• The platform address, DNS records, and firewall rules. For BGP, also get the local ASN, peer ASN, and peer address.

Keep management access available when an existing interface joins OVS. Shared management links need a persistent host configuration and a recovery path. Discovery cannot verify the physical switch configuration.

Select one tenant network

Use Enter or Space to select one radio button:

Choice	Use when	Generated preset
Cloud network	Projects use one external address pool, normally private. An upstream gateway provides Internet access when required.	cloud-vlan
Cloud + public network	Projects also need a provider-routed public pool on a second VLAN of the same trunk.	cloud+public-vlan
Custom configuration	You maintain the complete environment and review the selected Fleet layers.	custom

An imported internal-only preset appears as Cloud network and keeps its stored name. Its generated network defaults match cloud-vlan. It does not add a no-egress policy or remove the provider network.

The following physical patterns use these choices:

Physical pattern	Configuration	Interface guidance
Dedicated, untagged NIC	Cloud VLAN 0; carrier such as ens5	An unused link can be a candidate. Confirm which provider segment reaches it.
Dedicated tagged trunk	Switch VLAN ID; carrier such as eno2	Enter the parent carrier. Kube-OVN applies the VLAN in OVS.
Existing bond	Switch VLAN ID; carrier such as bond0	Prepare the bond first. Do not select a member NIC.
Shared management and tenant trunk	Reviewed host network configuration plus the correct parent carrier	Explicit selection only. Moving the carrier into OVS can affect SSH and boot-time addressing.
Different NIC names across servers	Default interface plus Interface · SERVER overrides	Each override becomes a ProviderNetwork customInterfaces entry.
Cloud and public VLANs	Two VLANs and address plans on one carrier	Reserve router, host, VIP, and anchor addresses before tenant allocation.

VLAN 0 means untagged. A provider's virtual network identifier is not necessarily an 802.1Q tag inside its VMs.

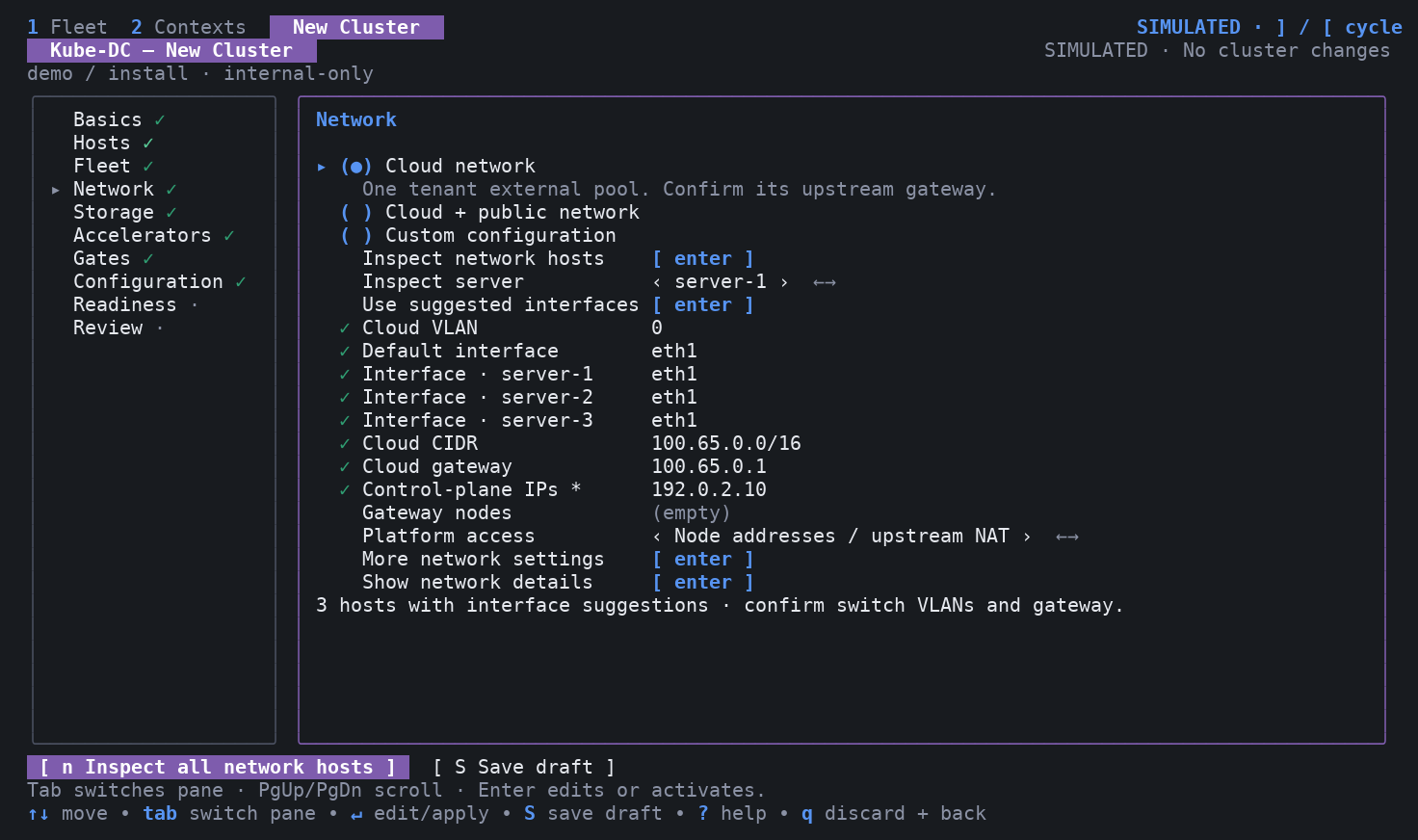

Inspect and map interfaces

1. In Hosts, enter each Kubernetes node name, SSH target, and verified host key.
2. In Network, select Inspect network hosts, or press n. The CLI reads at most four hosts at once through pinned SSH connections.
3. Select Use suggested interfaces if it appears. The action maps hosts with exactly one unused, up Ethernet interface or bond. It leaves ambiguous hosts for manual selection and keeps mappings for other hosts.
4. Review Default interface and each Interface · SERVER row. An empty override uses the default interface. Confirm the mapping against cabling and switch configuration.
5. Select Show network details to see addresses, MTU, routes, link ownership, and individual choices. A link with addresses or routes requires explicit review. Bond members, VLAN child interfaces, and virtual links receive no automatic proposal.
6. Enter the VLAN, CIDR, gateway, control-plane IPs, and gateway nodes. Use More network settings for MTU, reservations, anchors, and private endpoints.
7. Inspect again after changing a mapping. Save the input and review it before installation.

Discovery reads detailed links and IPv4 routes from all routing tables. It also reads IPv4 and IPv6 interface addresses. Results expire after five minutes. Changing a host key or SSH target invalidates its proposals. Discovery does not prove that an address is free, that a switch carries a VLAN, or that the full path supports the observed NIC MTU.

Choose platform access separately

Platform access selects who owns the address used by platform clients. Envoy uses the host network in all three modes:

Choice	Required network conditions	Installation output
Node addresses / upstream NAT	DNS reaches the ingress nodes directly, or through a separately configured upstream NAT rule.	INGRESS_ADDRESS_LAYER=none; no public ingress VIP layer
Floating VIP (L2)	A reserved VIP and a shared L2 segment reachable by the eligible ingress nodes.	metallb-l2; MetalLB address pool and L2 advertisement
Routed VIP (BGP)	A reserved VIP and router peering configured with the supplied ASNs and peer address.	metallb-bgp; MetalLB address pool, peer, and BGP advertisement

A BGP platform VIP does not convert tenant EIP/FIP networks into routed-only networks. Tenant external gateways still need their configured provider path. An L2 interface selector does not limit MetalLB leader election by itself; eligible nodes must also have the interface. See MetalLB interface and node selection.

For a VIP, ingress nodes must be gateway nodes. Leave Ingress nodes empty to use the gateway set, or enter a reviewed subset under More network settings. Avoid a mix of control-plane and worker ingress nodes: the management API listener has different port ownership on those roles.

For an L2 VIP in the public pool, the generator can propose public anchor addresses next to the VIP and reserve them in tenant IPAM. Confirm that the whole range is allocated to this cluster. These are calculated addresses, not addresses verified as free. The host-facing public anchor is an OVS internal port; do not create a competing Linux VLAN interface on the same tag.

Review site-specific settings

The following features need more than an interface suggestion:

Feature	Inputs and additional work
Cloud anchors	EXT_NET_ANCHOR_IPS, interface, required flag, gateway nodes, and reserved addresses. Anchors alone do not enable Internet NAT.
Node-based egress NAT	Explicit EXT_NET_NODE_EGRESS_ENABLED=true, complete anchors, upstream routing, and host forwarding/NAT design. The default stays false.
Host default route on public anchors	Explicit public host-IP mapping and EXT_NET_PUBLIC_ANCHOR_DEFAULT_ROUTE=true. Requires a host migration and recovery plan.
Private platform endpoints	API/ingress VIPs, enable flags, endpoint overlays, DNS, reservations, and both global allowlists. The form preserves values; it does not reproduce custom sibling overlays.
Pod, Service, join, and infra ranges	Review together in Configuration. Existing RKE2 address ranges must agree with the generated platform values.
Datacenter VLAN attachments	A separate post-install feature with fabric allocation and tenant authorization. See physical VLAN attachments.
Project routed networks	A separate post-install feature with managed routing gateways and explicit import/export policy. See routed networks. This BGP feature is independent of MetalLB.

Use Configuration for all other supported environment keys. An explicit pattern change resets its owned network defaults. A platform-access change resets the previous address mode's fields and derived Service shape. Unchanged imports retain their overrides so validation can report conflicts.

Verify the result

Before confirming installation, check the generated environment and plan for the selected preset, per-node NICs, VLANs, address pools, reservations, and platform access. The installer renders these values through the existing network and ingress generators.

After installation, verify ProviderNetwork readiness on every intended node, tenant DNS and egress, platform HTTPS from an external client, and the expected source address. Test reboot recovery and VIP failover before relying on a shared carrier or redundant ingress. A successful render does not qualify those live network paths.

Continue with the installation guide.
